品牌: cepai
| Quantity（Piece/Pieces） | 1 ~ 10 | >10 |
| Est. Time（days) | 20 | To be negotiated |
如果您今天完成付款，您的訂單將在交貨日期內發貨。
我們公司生產氣動的各種閥的電氣系列，例如氣動控制閥，電氣控制閥，氣動球閥， 電球閥和氣動蝴蝶閥，氟襯裡的閥等

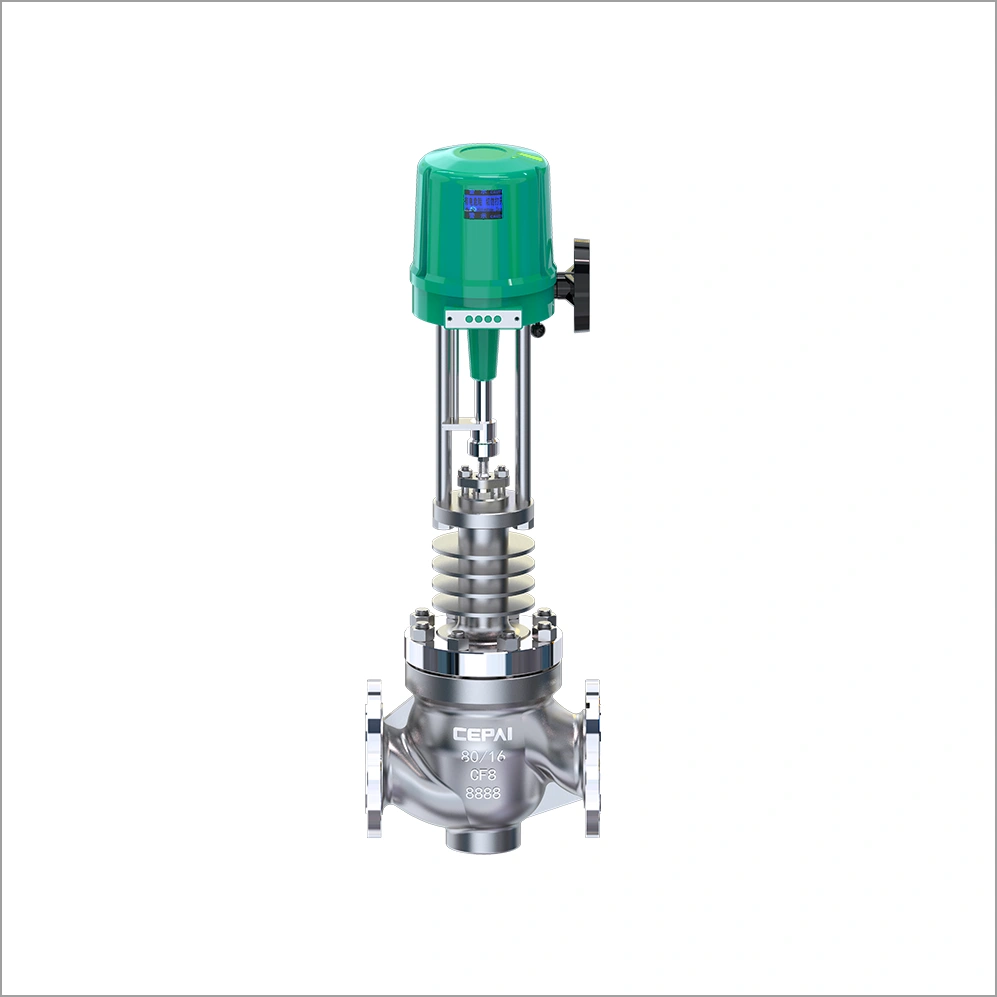

該產品是電氣高溫控制閥。
高溫電流調節閥是用於控制高溫介質流動的調節閥。它使用電動執行器作為駕駛裝置，並通過控制執行器的打開來調整閥的流速。調節閥通常適用於高於200℃的工作溫度的培養基，例如蒸汽，熱油，等。
我們公司還有許多其他產品，如果您有興趣，可以單擊主頁查看，歡迎您的諮詢。
v alve b ody
| Type: | straight-through cage ball valve |
| Nominal diameter: | DN15-400mm |
| Nominal pressure: | PN16, 40, 64; ANSI150, 300, 600 |
| Connection form: | flange type |
| Valve body material: | WCB, WC6, WC9, CF8, CF8M, etc. |
| Valve cover form: | >230℃ (with heat sink) |
| Gland type: | Bolt pressing type |
| Filler: | flexible graphite |
| Valve core form: | pressure balanced valve core |
| Adjustment characteristics: | equal percentage, linear |
| Internal parts materials: | 304, 304 surfacing STL, 316, 316 surfacing STL, 316L, etc. |
| (1) Pneumatic actuator | |
| Model: | film type |
| Diaphragm material: | ethylene-propylene rubber sandwiched with nylon |
| Spring range: | 20-100KPa, 40-200KPa, 80-240KPa |
| Air supply pressure: | 140KPa, 160KPa, 280KPa, 400KPa |
| Air source connector: | Rc1/4, Rc3/8 |
| Ambient temperature: | -30 ~ +70℃ |
| Mode of action: | air-opening type (reaction), air-closing type (direct action) |
| Remarks: | |
| ① This model of large diameter or high pressure differential regulating valve can also be equipped with a straight stroke piston actuator. | |
| ② If the ambient temperature is lower than -30℃, please contact Xipai technical personnel. | |
| (2) Electric actuator | |
| Model: | Electric actuator |
| Voltage: | 220V, 380V |
| Ambient temperature: | -30-+70℃ |
| Control signal: | 4-20mADC (4-20mA signal feedback can be provided according to customer requirements) |
表現
| Leakage amount: | Metal valve seat: Complies with ANSI B16.104 Level IV |
| Non-metallic valve seat: | conforms to ANSI B 16.104 Class VI Accessories (configured upon request) Positioner, filter pressure reducing valve, hand wheel mechanism, limit switch, solenoid valve, valve position transmitter, air control valve,speed increaser, position keeping valve, etc. |
產品分類 : 電控閥
